ATMOS-PRO
Currently out of stock
PURPOSE OF THE DEVICE
Air cleaner-ionizer "ATMOS-PRO" is one of the most advanced in terms of technical characteristics and comfortable functions. The device uses the most powerful electronic circuit and a specially designed geometry of dust collecting plates with a set of ionizing pins to effectively implement the well-known principle of electrostatic trapping of dust particles. It is designed for use in rooms up to 120 cubic meters. The device has three modes of air purification and the "CONTROL FRESH" function. The intelligent system "CONTROL FRESH" allows you to analyze air pollution and automatically turn on the maximum cleaning mode when heavy air pollution is detected. After passing through the cleaning chamber, the air is ionized using the built-in ionization unit and undergoes additional bactericidal treatment with three UV (ultraviolet) LEDs. Reusable dust collecting plates (3 pcs.) can be easily dismantled and washed with water. Ultra-modern design, sound indication of switching modes, the possibility of separately switching on bactericidal LEDs and installation in two positions - horizontally and vertically (on the wall). Possibility of round-the-clock operation, low power consumption, almost silent operation and various colors. In addition - function of double aromatization of air. Flavors are included. Virtually silent operation and a variety of colors. In addition - function of double aromatization of air. Flavors are included. Virtually silent operation and a variety of colors. In addition - function of double aromatization of air. Flavors are included.
SPECIFICATIONS
| Supply voltage | 220 V |
| Power consumption | 35 W |
| Served Volume | 120 m3/(48 m2 ) |
| Concentration of negative air ions | 50000 units / cm cube |
| Number of operating modes | 3 |
| UV LED Power | 3 pcs. x 2000 µW |
| Air aromatization | available |
| dimensions | 290 x 115 x 210 mm |
| Weight | 1.7 kg |
| Life time | 10 years |
PRINCIPLE OF OPERATION
The principle of operation of the ATMOS-PRO air cleaner-ionizer is to create a directed electric field (corona discharge) between pointed ionizing spikes and metal dust collecting plates located inside the device case. As a result of this process, ionic currents flow between the aforementioned elements, providing air movement through the inside of the device case. Together with the air, fine dust is sucked into the device and, under the action of electrostatic forces, is attracted to the dust collecting plates. The air is purified and additionally ionized - enriched with oxygen air ions, creating the effect of "healthy" air throughout the entire volume of the room. Besides, there is simultaneous ozonation within the permissible concentration for a person and bactericidal treatment of air using ultraviolet LEDs located inside the housing. This is necessary to destroy unpleasant odors, harmful microbes, viruses and bacteria.
To use the effect of air aromatization, the user has the opportunity to install aroma plates from the supplied set in the appropriate holders. Due to the flow of pre-cleaned and ionized air, the aroma molecules are carried away from the surface of the aroma plate. Thus, the air is saturated with the smell of aroma.
DEVICE DEVICE

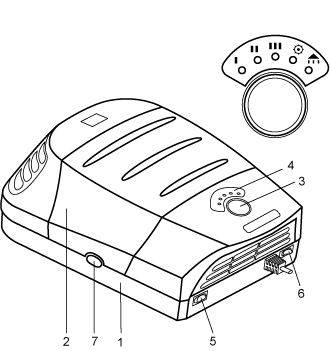

Air cleaner-ionizer " ATMOS-PRO " consists of the following parts (see Fig. 1):
1 Housing
2 Cover
3 Mode button
4 LED panel
5 UV LED control button
6 Power switch
7 Latch
Fig.1 General view of the device
Inside the body of the device there are: metal dust plates (under the cover - 3 pcs.), a set of four bars with pointed ionizing spikes, a sensor of the Control Fresh air pollution level analysis system, holders for two aroma plates, bactericidal ultraviolet LEDs (3 pcs.) and an additional ionization electrode.
At the bottom of the case there is a power cord and a plug for connecting to a 220V alternating current source.
The panel with LED indicators (4) consists of the following elements:
1st air purification mode activation indicator (green LED)
2nd air purification mode activation indicator (green LED)
3rd air purification mode activation indicator (green
LED
)
Air cleaner-ionizer "ATMOS-PRO" is able to operate in three different modes depending on the degree of air pollution. The inclusion of each of the modes is carried out by sequentially pressing the button for switching modes (3). In any of the modes, the user can additionally connect bactericidal ultraviolet LEDs. Turning these LEDs on or off is done by pressing the button (5).
During the operation of the air cleaner-ionizer, the system for analyzing the level of air pollution “Control Fresh” is automatically activated. If a special sensor detects strong air pollution, the intelligent system “Control Fresh” automatically switches the device to the third (maximum) cleaning mode.
TERMS OF USE
Preparation for operation
Select a suitable location for the installation of the instrument. Air cleaner-ionizer "ATMOS-PRO" can be installed both on a horizontal surface and vertically suspended from a wall. For suspended mounting, use the mounting kit supplied with the kit. Choose a suitable place for installation or installation. It is not recommended to install the device at a distance closer than 1 m from the place of a long stay of a person. Make sure that the mains cable is long enough to connect to the 220 V power supply.
Beginning of work
Connect the mains plug to a 220V AC power source. Turn the power switch (6) located at the bottom of the air inlet grille from position "0" to position "I" (on). Leaning your hand against the air outlet grille, you will feel a light breeze - the device is operating in the first (I) mode. The first air purification mode activation indicator on the panel with LED indicators (4) lights up green.
To switch the device to the second (II) operating mode, it is enough to press the mode switch button (3) once. When the second mode is switched on, the green indicator of the second mode activation additionally lights up on the panel with LED indicators (4). The next press on the mode switch button (3) turns on the third (III) air purification mode. At the same time, on the panel (4), one more indicator of the activation of the third mode additionally lights up in green. Subsequent pressing of the button (3) again switches the device to the first (I) air cleaning mode and only one corresponding LED will glow green on the panel (4). In other words, successive pressing of the button (3) cycles through the air purification modes in the following order:
First (I) > Second (II) > Third (III) > First (I)
For the convenience of the user, the number of green indicators corresponds to the number of the device operation mode, and each pressing of the button (3) is accompanied by an audible signal.
Long-term (possibly round-the-clock) operation of the product is recommended. Depending on the degree of air pollution, it is recommended to use different modes of air purification. The more pollution, the higher the regime. During sleep, it is wise to use the first air purification mode.
The ATMOS-PRO air cleaner-ionizer functions almost silently, however, a short “hiss” may appear. Increased noise during operation of the device indicates the need for service (see below). In addition, remember that the effectiveness of the device is sharply reduced in the absence of proper timely maintenance.
Air pollution analysis system “Control Fresh”
The ATMOS-PRO air cleaner-ionizer has a number of user-friendly features, one of which is the Control Fresh intelligent system. The essence of this system is to automatically turn on the maximum (third) mode of air purification in case of detection of strong pollution. Inside the instrument housing, next to the air inlet grille, there is a sensor that automatically detects heavy contamination of the incoming air stream. This sensor sends a signal to the “Control Fresh” system, and it, in turn, turns on the third (III) air purification mode for a while to get rid of air pollution more quickly. At the same time, on the panel (4), simultaneously with the three green mode indicators, the indicator of the “Control Fresh” system sensor activation lights up in orange. Over time,
Using the air sterilization function with UV LEDs
Another important comfort feature for the user is air sterilization. Three bactericidal ultraviolet LEDs are located in the inner part of the body of the device. The user, in any of the operating modes of the device, by pressing the control button for ultraviolet LEDs (5), can turn on the function of additional air sterilization.
In this case, on the panel (4), the indicator for turning on the UV LEDs will light up in blue. Subsequent pressing of the button (5) turns off the UV LEDs, and the corresponding indicator on the panel (4) goes out.
Structurally, the ultraviolet LEDs are located so that the air flow after passing through the cleaning chamber inside the device is additionally sterilized. Ultraviolet LEDs have a wavelength of the soft ultraviolet spectrum. This range of the spectrum is absolutely harmless to humans, but it is able to effectively sterilize the air, destroying microbes, viruses, bacteria, fungi and harmful microorganisms.
Additional air ionization
The ATMOS-PRO air cleaner-ionizer has a special ionization electrode, which is located inside the housing near the outlet grate for air ionization at the recommended concentration. The ionization function is the process of enriching the air with useful ions. Negatively charged ions of the oxygen molecule have a positive effect on the human body, strengthen the immune system, reduce fatigue, give vigor and health. The air becomes healing and "life-giving", as in seaside resorts or in the mountains.
Using the Extra Fragrances Function
Before switching on the appliance, press the latch (7) and open the lid (2) by pulling it up slightly. Unpack the hermetically packed set of aroma plates included in the kit. Take one or two aroma plates and place them in their respective holders as shown in Fig. 2. We remind you that the holders for aroma plates are located inside the body of the device. Then close the lid (2) in reverse order until you hear a slight click - the appliance is ready for use. During the operation of the air cleaner-ionizer, due to the flow of pre-cleaned air, the aroma molecules are carried away from the surface of the aroma plate. Thus, the air is saturated with smell. Please note that the concentration and durability of the fragrance depends on the number of plates installed and the operating time of the device. The expiration date of aromoplastin is indicated on the package.
Switching off the device
To turn off the device in any of the modes, it is enough to turn the power switch (6) from position "I" to position “0” (off). All indicators will go out - the device is switched off. It is recommended that during long breaks in the use of the ATMOS-PRO air cleaner-ionizer, remove the power cord plug from the 220 V power supply socket.

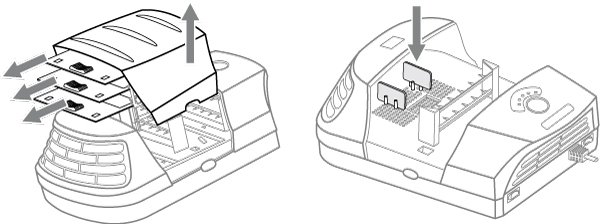

Rice. 2 Dismantling the dust collecting plates and installing the air plates
SERVICE
For ease of maintenance, in case of operation of the device on a vertical surface (wall), it is recommended to move the device to a flat horizontal surface (table). Turn the power switch (6) to position “0” (off). Remove the mains plug of the device from the socket of the 220V power source. Open the cover (2) by pressing the latch (7) and one by one (one by one) dismantle the metal dust collecting plates Fig. 2. Wipe the dust plates thoroughly with a damp cloth. 3, or wash with water using a detergent (such as soap). Then dry the dust plates completely and reinstall in the reverse order. Close the lid - the device is ready for use.
Maintenance of the air cleaner-ionizer "ATMOS-PRO" is carried out as the dust collecting plates get dirty, but at least 1 time in 2 weeks. Increased noise during operation indicates the need for maintenance of the device.
For ease of maintenance, in case of operation of the device on a vertical surface (wall), it is recommended to move the device to a flat horizontal surface (table). Turn the power switch (6) to position “0” (off). Remove the mains plug of the device from the socket of the 220V power source. Open the cover (2) by pressing the latch (7) and one by one (one by one) dismantle the metal dust collecting plates Fig. 2. Wipe the dust plates thoroughly with a damp cloth. 3, or wash with water using a detergent (such as soap). Then dry the dust plates completely and reinstall in the reverse order. Close the lid - the device is ready for use.
Maintenance of the air cleaner-ionizer "ATMOS-PRO" is carried out as the dust collecting plates get dirty, but at least 1 time in 2 weeks. Increased noise during operation indicates the need for maintenance of the device.
PRECAUTIONARY MEASURES
Dear user! We kindly ask you to carefully read the warnings and cautions below when using the ATMOS-PRO air cleaner-ionizer. We urge you to follow all these precautions.
Air cleaner-ionizer "ATMOS-PRO" is designed for operation or storage at temperatures from + 5 to + 45 degrees C and relative humidity up to 80 percent. In the case of transportation at low temperatures, it is necessary to keep the device at room temperature for about 30 minutes.
Warnings:
1) To avoid the risk of fire or electric shock due to short circuit, do not use a damaged power cord or plug. In case of damage of this kind, it is necessary to contact a specialized Service Center for the repair of air cleaners.
2) Do not bend, pinch, pull, or damage the power cord. Do not place foreign objects on the power cord.
3) Do not attempt to repair or disassemble the product yourself. Doing so may result in product failure, fire or short circuit.
4) Turn off the power and always remove the mains plug from the socket before servicing or moving the instrument to a new location. Carry out these operations only in accordance with the Instructions for Use.
5) Do not touch the instrument with wet hands. This may result in electric shock.
6) Do not install the product in places with high humidity (bathroom, etc.). Doing so may result in electric shock or damage to the instrument.
7) Do not use this product in places where there is a lot of fumes from paints and varnishes and petroleum products. Doing so may result in a risk of fire or electric shock.
8) This product can purify the air, but it cannot decompose some gases, including carbon monoxide (carbon monoxide).
Caveats:
1) Do not install the product near heat sources (heaters, central heating radiators, etc.). This can lead to deformation and discoloration of the instrument case.
2) Do not expose the device to direct sunlight.
3) Do not place the device closer than 1 meter from TVs, radios, speakers and antennas. This product may cause interference.
4) Do not use the product outdoors.
5) Do not use this product as a smog remover or kitchen hood. This will shorten the service life or reduce the performance of the device.
6) Do not allow synthetic fluids, sparks or burning objects to enter the instrument. This may cause fire and fire.
7) Do not insert fingers, other parts of the body or foreign objects into the air inlets and outlets. Doing so may result in electric shock or injury.
8) Turn off the product before spraying insect repellent indoors to prevent chemicals from getting inside the product.
9) When using the device together with a humidifier, do not allow moisture to enter the device. This may result in electric shock.
10) Do not block the air inlet and outlet, as this will impair the performance of this product and may cause damage.
11) Do not place a container of water near the product to avoid electric shock and breakdown.
12) Never use gasoline or its derivatives to clean the product or its parts. In this case, the plastic housing of the instrument may be destroyed, resulting in electric shock or fire.
13) Please unplug the power cord from the socket if you do not use the product for a long period of time. When unplugging the power cord, hold the outlet while carefully pulling out the plug. Otherwise, it may cause a short circuit and fire.
14) Do not install the product on unstable surfaces. This may cause the device to fall and malfunction.
15) Do not sit or stand on the product, protect it from mechanical impact and damage. Do not operate the product if it is tilted or dropped. This can lead to breakage.
16) It is forbidden to place paper napkins, clothes and other items on the surface of the device.
17) If the product is used in conjunction with heating devices, good ventilation must be ensured. This product cannot remove carbon monoxide (carbon monoxide). Otherwise, you may suffocate.
18) Do not use the product in rooms filled with flammable explosive substances, corrosive gases, metal dust. This may cause a fire.
19) Do not place the device at a distance closer than 1 meter from places where people stay for a long time.
20) Do not install the appliance in places easily reachable by children.
21) People with hypersensitivity to ozone should not spend a long time in the room where the product works.
CONTENTS OF DELIVERY
Air cleaner-ionizer "ATMOS-PRO" - 1 pc.
Packing set - 1 pc.
Operating instructions (user manual) - 1 pc.
A set of aroma plates for air aromatization - 1 pc.
Fixing set - 1 pc.
WARRANTY
The manufacturer guarantees that the product complies with the requirements of technical specifications TU 3468-004-70251761-2007, provided that the owner follows the instructions for use, transportation and storage. Warranty period of operation - 12 months from the date of sale. In the absence of the date of sale and the stamp of the store, the warranty period is calculated from the date of release of the product by the manufacturer.
The manufacturer is released from warranty obligations in the following cases: seal failure, damage to the case and its components, mains cable, malfunctions that occurred due to the fault of the user in case of non-compliance with the operating instructions or in case of self-repair, as well as damage that occurred due to force majeure circumstances. In this case, the repair is carried out at the expense of the owner.
The service life of the product is 10 years from the date of sale. After the end of the service life of the product, the organization that has the right to audit the product and make a conclusion about the possibility of its further operation.
